old product
mechanical time control device
ausgangsprodukt

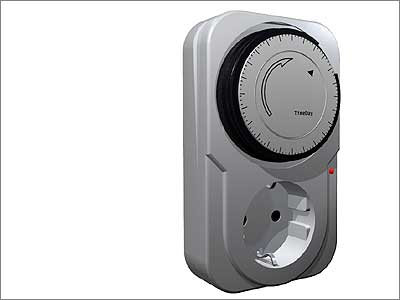

this is the cad model of the old product. it is the basis for designing the other two products.
the original product is produced in asia and sold all over the world.

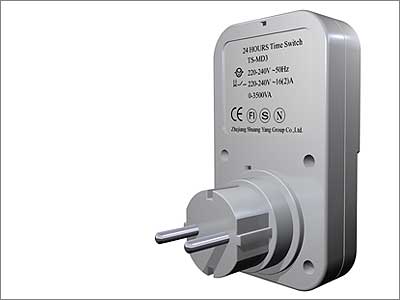

rückansicht des ausgangsproduktes backview with type plate.

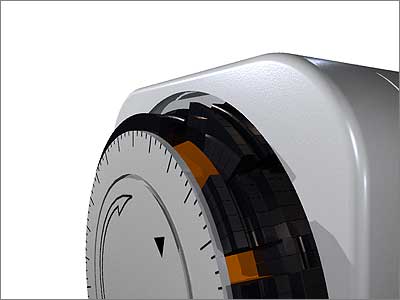

detail ausgngsprodukt

the main possibilities for improving this product can be found in the way it is operated and handled. the tiny switches for example can hardly be used and the exact time can't be read easily.
